| Frame | Single deck on both sides |
| No. of spindles / section | 16 NOS. |
| Cops size | 220 mm. , 300 mm. |
| Yarn weight | Up to 1 kg. |
| Winding speed | 300 to 700 mts./ min. variable by control panel |
| Yarn speed | 300 to 700 mts/ min. constant controlled by invertor |
| Traverse mechanism | Gear box |
| Driving device | Endless Belt |
| Tension device | Adjustable precise micro tensioner (V - type) |
| Control panel | Electronic programmable logic controller with 15 different program storage capacity |

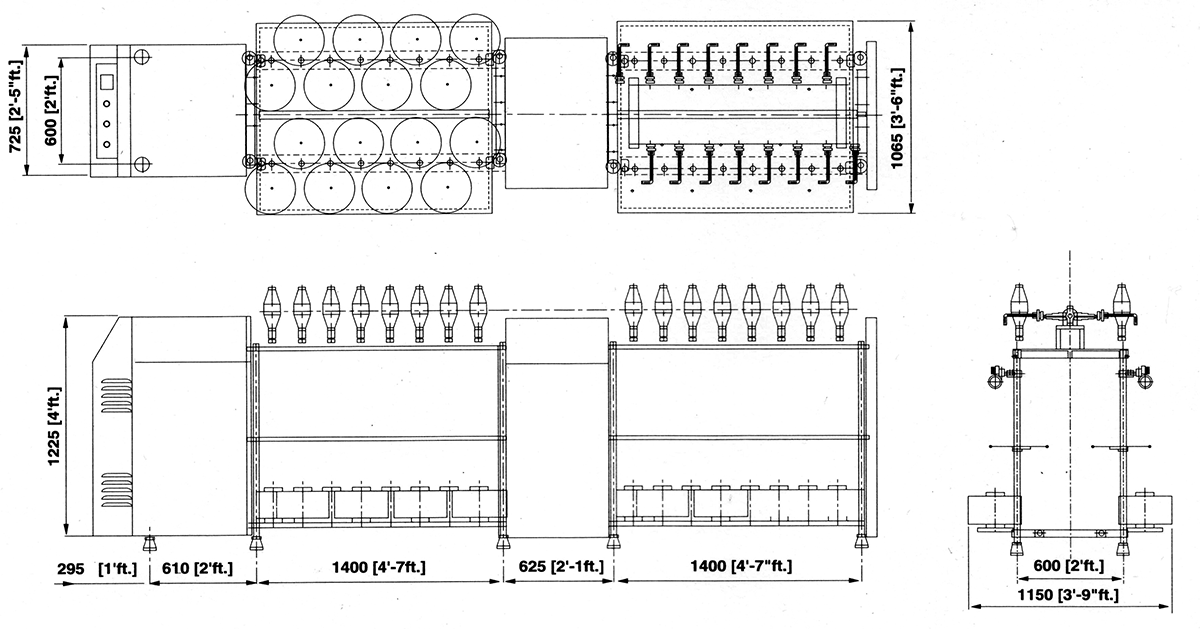

| NO. OF SPINDLES | MACHINE DIMENSIONS | POWER | |||
|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | DRIVE MOTOR | TRAVERSE MOTOR | |
| 48 | 20' (6100 mm) | 3'-6' (1100 mm) | 4' (1200 mm) | 1.5 H.P. | 1.0 H.P. |
| 64 | 24' (7300 mm) | 3'-6' (1100 mm) | 4' (1200 mm) | 2.0 H.P. | 1.0 H.P. |
| 80 | 28' (8500 mm) | 3'-6' (1100 mm) | 4' (1200 mm) | 2.0 H.P. | 1.0 H.P. |
| 96 | 32' (9750 mm) | 3'-6' (1100 mm) | 4' (1200 mm) | 2.0 H.P. | 1.0 H.P. |
| 112 | 36' (11000 mm) | 3'-6' (1100 mm) | 4' (1200 mm) | 2.0 H.P. | 1.0 H.P. |
